EVSIS

AC Charger

7kW / 11kW AC Charger

Made in Korea
4.3" LCD touch display (optional)
OTA for optimal operation
Safe and intuitive to use
Wall-mounted or Stand type

DC Charger

All-in-one system

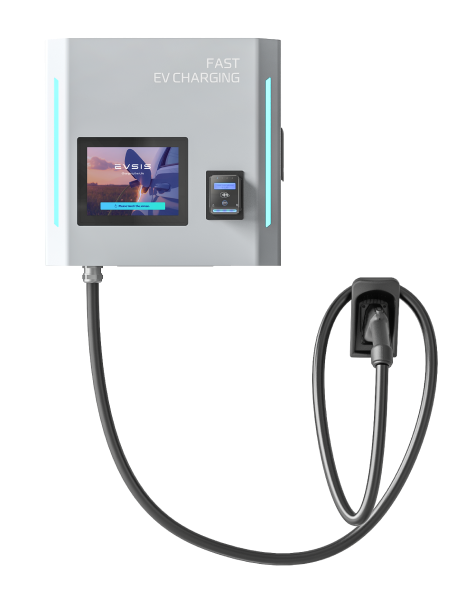

30kW DC Charger

Made in Korea
Wall-mounted or Stand type
12.1" LCD touch display
OTA for optimal operation
Safe and intuitive to use
Slim DC Charger installed to the wall for small space

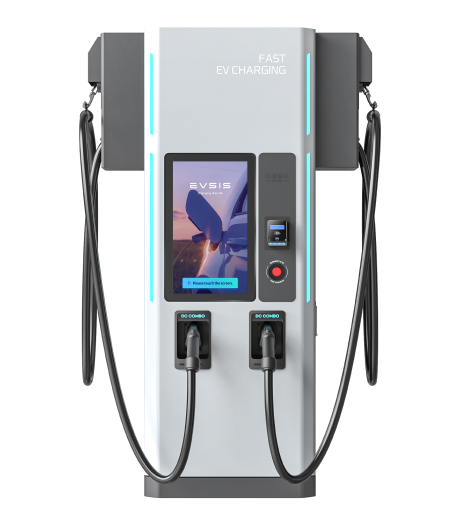

100kW DC Charger

Made in Korea
24" LCD touch display
OTA for optimal operation
Safe and intuitive to use
Easy installation and minimal maintenance

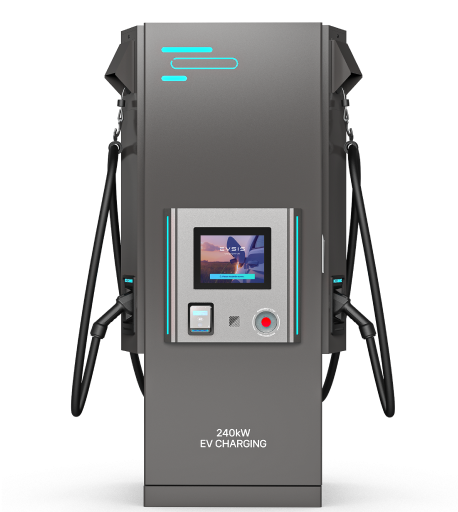

180kW / 240kW DC Charger

Made in Korea or USA
12.1" LCD touch display
OTA for optimal operation
Safe and intuitive to use
Easy installation and minimal maintenance

DC Charger

Distributed system

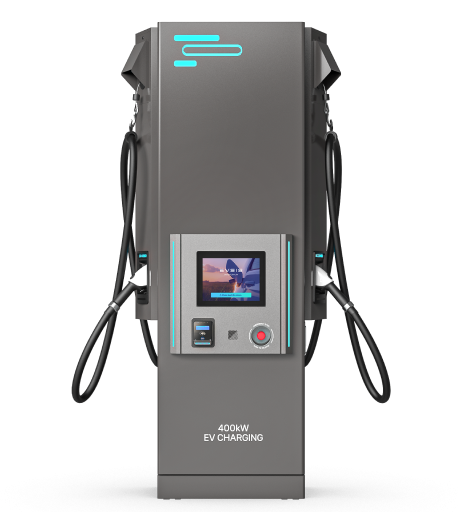

350kW / 400kW DC Charger

Made in Korea or USA
12.1" LCD touch display
OTA for optimal operation
Safe and intuitive to use
Easy installation and minimal maintenance

General	Charging type	Mode 3,Level2
	Connector	Type 1 (UL Version), Type 2 (CE Version)
	Display	4.3" LCD Display, Touch screen (optional)
	Support language	English (Other languages avalable upon request)
	Push buttons	1 stop button
	User authentication	ISO/IEC 14443 A/ B Mifare RFID reader
Electric	Input	AC 240V, 50/60Hz, Max. 7kVA, single phase (CE Version) AC 240V, 50/60Hz, Max, 7kVA or 11kVA, single phase (UL Version)
	Output	AC 240V 32A, Max. 7 kW (CE Version) AC 240V, 32A, Max, 7kW (UL Version) AC 240V, 50A, Max, 11kW (UL Version)
	Metering accuracy	± 1.0%
	Communication protocol	OCPP 1.6)
Environment	Operating temperature	-30°C ~ 50C (-22°F ~ 122°F)
Environment	Humidity	<RH95% (Non-condensing)
Safety standard	Protection	Over voltage, Over current, Short-circuit, Over temperature, Under voltage, Ground fault including DC residual current protection, Surge protection, Contactor welding
Safety standard	Communication	IEC 61851-1, IEC 61851-22
Mechanical	Protection degree	IP54 (NEMA 3R), IK10
	Charging cable length (Standard)	6m (19.7ft)
	Dimension	235(W) x 469(H) x 184(D) mm (9.3(W) x 18.5(H) x 7.2(D) inch)
	Weight	7KW : 9.3kg (CE Version) 7kW : 22Ib (UL Version) 11kW : 24.3Ib (UL Version)

General	Connector	Cccs
	Communication with EV	IEC 61851 PLC
	Display	12.1" LCD Display, Touch screen
	Support language	English (Other languages available upon request)
	Push buttons	1 emergency stop button
	User authentication	ISO/IEC 14443 A / B Mifare RFID reader, Credit card reader
Electric	Input	3@4W, 400VAC, 50/60Hz, Max.33kVA (CE Version) 304W, 480VAC, 60Hz, Max.33kVA (UL Version)
	Input \| THD	<5%
	Output	Voltage : 150~1,000VDC(Max) Current : 80A(Max) Max power : 30kW
	Power factor	>0.96 (Full Scale)
	Charging mode	Ccc cv
	Voltage accuracy	± 1.0% (Full Scale)
	Current accuracy	± 1.0% (Full Scale)
	Max. efficiency	>94% (at rated voltage, rated current)
	Isolation impedance	10MΩ@1,000V
Environment	Operating temperature	-30°C ~ 50C (-22°F ~ 122°F with derating)
Environment	Humidity	<RH95% (Non-condensing)
Communication	Network interface	Ethernet, Cellular, WLAN
Communication	Protocol	OCPP1.6J (OCPP 2.0.1 will be supported in 2024)
Safety standard	Protection	Over voltage, Over current, Short-circuit, Over temperature, Earth leakage, Surge protection, Contactor welding
Mechanical	Protection degree	IP54 (NEMA 3R), IK10
	Cooling	Forced air
	Charging cable length (Standard)	6m (19.7ft) / Adjustable upon request
	Dimension	650(W) x 622.4(H) x 325.1(D) mm (25.6(W) x 24.5(H) x 12.8(D) inch)
	Weight	91kg (200Ib)

General	Connector	CCS,CHAdeMO (optional)
	Communication with EV	IEC 61851 PLC
	Display	24" LCD Display, Touch screen
	Support language	English (Other languages available upon request)
	Push buttons	1 emergency stop button
	User authentication	ISO/IEC 14443 A / B Mifare RFID reader, Credit card reader
Electric	Input	3@4W, 400VAC, 50/60Hz, Max.110kVA (CE Version) 3@4W, 480VAC, 60Hz, Max.110kVA (UL Version)
	Input \| THD	<5%
	Output	V1CH Voltage : 150~1,000VDC(Max) Current : 200A(Max) Max power : T00kW (50kW each for simultaneous charging) 2CH Voltage : 150~1,000VDC(Max) Current : 200A(Max) Max power : T00kW (50kW each for simultaneous charging)
	Power factor	>0.96 (Full Scale)
	Charging mode	CC, cv
	Voltage accuracy	± 1.0% (Full Scale)
	Current accuracy	± 1.0% (Full Scale)
	Max. efficiency	>94% (at rated voltage, rated current)
	Isolation impedance	10MΩ@1,000V
Environment	Operating temperature	-30C ~ 50C (-22°F ~ 122°F with derating)
Environment	Humidity	<RH95% (Non-condensing)
Communication	Network interface	Ethernet, Cellular, WLAN
Communication	Protocol	OCPP1.6J (OCPP 2.0.1 will be supported in 2024)
Safety standard	Protection	Over voltage, Over current, Short-circuit, Over temperature, Earth leakage, Surge protection, Contactor welding
Mechanical	Protection degree	IP54 (NEMA 3R), IK10
	Cooling	Forced air
	Charging cable length (Standard)	6m (19.7ft) / Adjustable upon request
	Dimension	1,064(W) x 1,898(H) x 523(D) mm (42(W) x 75(H) x 20.6(D) inch)
	Weight	393kg (8661b)

		DC Charger 180kW	DC Charger 240kW
General	Connector	CCS, NACS (will be supported in 2024), CHAdeMO(optional)
	Communication with EV	IEC 61851 PLC
	Display	12.1" LCD Display, Touch Screen
	Support Language	English (Other languages available upon request)
	Push Buttons	1 emergency stop button
	User Authentication	ISO/IEC 14443 A/B Mifare RFID reader, Credit card reader, NFC
Electric	Input	3@3W (no neutral), 400VAC, 50/60Hz, Max.198kVA or 264kVA (CE Version) 3@3W (no neutral), 480VAC, 60Hz, Max.198kVA or 264kVA (UL Version)
	Input \| THD	<5%
	Output	1CH Voltage : 150~1,000VDC(Max) Current : 350A(Max) Max power : 180kW (90kW each for simultaneous charging) 2CH Voltage : 150~1,000VDC(Max) Current : 350A(Max) Max power : 180kW (90kW each for simultaneous charging)	1CH Voltage : 150~1,000VDC(Max) Current : 350A(Max) Max power : 240kW (120kW each for simultaneous charging) 2CH Voltage : 150~1,000VDC(Max) Current : 350A(Max) Max power : 240kW (120kW each for simultaneous charging)
	Power Factor	>0.96 (Full Scale)
	Charging Mode	CC, cv
	Voltage Accuracy	± 1.0% (Full Scale)
	Current Accuracy	± 1.0% (Full Scale)
	Max. Efficiency	>94% (at rated voltage, rated current)
	Isolation Impedance	10MΩ@1,000V
Environment	Operating temperature	-30C ~ 50C (-22°F ~ 122°F with derating)
Environment	Humidity	<RH95% (Non-condensing)
Communication	Network Interface	Ethernet, Cellular, WLAN
Communication	Protocol	OCPP1.6J (OCPP 2.0.1 will be supported in 2024)
Safety standard	Protection	Over voltage, Over current, Short-circuit, Over temperature, Earth leakage, Surge protection, Contactor welding
Safety standard	Protection degree	IP54 (NEMA 3R), IK10
	Cooling	Forced air
	Charging Cable Length (Standard)	5.5m (18ft) / Adjustable upon request
	Dimension	1,065(W) x 1,900(H) x 663(D) mm (41.9(W) x 74.8(H) x 26.1(D) inch)
	Weight	637kg (1,405Ib)

		Dispenser 350kW JC-9HT2-350-CX5 (CE) JC-9HT2-350-CT5 (UL)	Dispenser 400kW JC-9HT2-400-CX5 (CE) JC-9HT2-400-CT5 (UL)
General	Connector	CCS, NACS (will be supported in 2024), CHAdeMO(optional)
	Communication with EV	IEC 61851 PLC
	Display	12.1" LCD Display, Touch Screen
	Support Language	English (Other languages available upon request)
	Push Buttons	1 emergency stop button
	User Authentication	ISO/IEC 14443 A/B Mifare RFID reader, Credit card reader, NFC
Electric	Input	DC 1,000V, 240VAC, 60Hz (CE Version) DC 1,000V, 277VAC, 60Hz (UL Version)
	Input \| THD	<5%
	Output (DC output 1)	Voltage : 150~1,000VDC (Max) Current : 500A(Max) Max power : 350kW (liquid-cooled cable)	Voltage : 150~1,000VDC (Max) Current : 500A(Max) Max power : 400kW (liquid-cooled cable)
	Output (DC output 2)	Voltage : 150~1,000VDC (Max) Current : 500A(Max) Max power : 350kW (liquid-cooled cable)	Voltage : 150~1,000VDC (Max) Current : 500A(Max) Max power : 400kW (liquid-cooled cable)
Environment	Operating temperature	-30C ~ 50C (-22°F ~ 122°F with derating)
Environment	Humidity	<RH95% (Non-condensing)
Communication	Network Interface	Ethernet, Cellular, WLAN
Communication	Protocol	OCPP1.6J (OCPP 2.0.1 will be supported in 2024)
Safety standard	Protection	Over voltage, Over current, Short-circuit, Over temperature, Earth leakage, Surge protection, Contactor welding
Safety standard	Protection degree	IP54 (NEMA 3R), IK10
	Cooling	Forced air
	Charging Cable Length (Standard)	5.5m (18ft) / Adjustable upon request
	Dimension	820(W) x 2,130(H) x 425(D) mm (32.3(W) x 83.9(H) x 16.7(D) inch)
	Weight	220kq (485Ib)
